As solar technology continues to evolve, one term is appearing more frequently in technical discussions, product specifications, and procurement decisions: TOPCon Solar Cell. If you are comparing module technologies or evaluating suppliers, understanding what a TOPCon solar cell is can help you make a more informed investment decision.
TOPCon solar cells are widely recognized as one of the most important advancements in crystalline silicon photovoltaic technology. They offer higher efficiency, lower degradation, and better performance under real-world conditions compared with conventional PERC cells.
This guide explains what TOPCon solar cells are, how they work, their advantages and limitations, and why they are rapidly becoming the preferred choice for utility-scale, commercial, and residential solar projects.

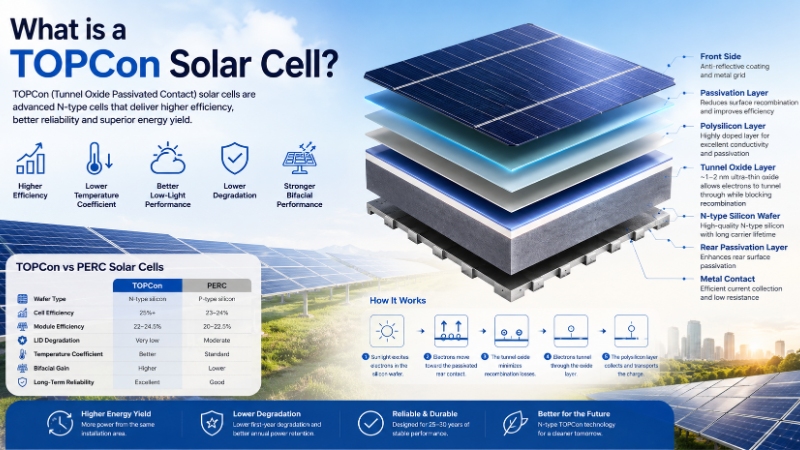

TOPCon stands for Tunnel Oxide Passivated Contact.
This technology improves the rear-side structure of a silicon solar cell by adding two critical layers:
An ultra-thin tunnel oxide layer
A doped polysilicon passivated contact layer
Together, these layers reduce electron recombination and allow charge carriers to move more efficiently through the cell. The result is higher conversion efficiency and improved energy yield.
A TOPCon solar cell is an advanced N-type crystalline silicon solar cell that builds upon traditional cell designs by incorporating passivated contact technology.
The key objective is to minimize electrical losses and maximize the amount of sunlight converted into usable electricity.
Compared with older technologies, a TOPCon solar cell provides:
Higher cell efficiency
Lower temperature coefficient
Better low-light performance
Reduced degradation over time
Stronger bifacial performance
These benefits make TOPCon one of the most competitive technologies in today's solar industry.
The operating principle of a TOPCon solar cell is based on selective carrier transport.
The tunnel oxide layer is only about 1–2 nanometers thick. It acts as a barrier that suppresses recombination while still allowing electrons to pass through quantum tunneling.
The polysilicon layer serves as a highly conductive contact and enhances passivation.
Sunlight excites electrons in the silicon wafer.
Electrons move toward the passivated rear contact.
The tunnel oxide minimizes recombination losses.
Electrons tunnel through the oxide layer.
The polysilicon layer collects and transports the charge.
This structure enables a TOPCon solar cell to achieve higher voltage and current output than standard cell designs.
The key performance metric for any solar cell is conversion efficiency, represented above. By reducing recombination losses, TOPCon technology increases the percentage of sunlight converted into electricity.
| Feature | TOPCon Solar Cell | PERC Solar Cell |
|---|---|---|
| Wafer Type | N-type silicon | Usually P-type silicon |
| Typical Cell Efficiency | 25%+ in production | 23–24% |
| Module Efficiency | 22–24.5% | 20–22.5% |
| LID (Light-Induced Degradation) | Very low | Moderate |
| Temperature Coefficient | Better | Standard |
| Bifacial Gain | Higher | Lower |
| Long-Term Reliability | Excellent | Good |
For most new projects, a TOPCon solar cell offers better lifetime performance and lower levelized cost of electricity.
Most TOPCon solar cells are based on N-type silicon wafers.
N-type silicon offers several inherent advantages:
No boron-oxygen related light-induced degradation
Higher minority carrier lifetime
Better resistance to impurities
Improved long-term stability
These characteristics make N-type TOPCon solar cells especially attractive for projects that require dependable performance over 25 to 30 years.
TOPCon solar cells achieve some of the highest commercial efficiencies available in mass production, enabling more power from the same installation area.
TOPCon modules continue generating efficiently during cloudy weather, early mornings, and late afternoons.
In hot climates, TOPCon solar cells maintain output more effectively than conventional technologies.
Lower first-year degradation and better annual retention improve long-term energy yield.
Many TOPCon modules are bifacial, allowing them to generate electricity from reflected light on the rear side.
Commercial TOPCon solar cells typically achieve:
Cell efficiency: 25% to 26%
Module efficiency: 22% to 24.5%
Bifaciality factor: 80% to 90%
These values may vary depending on manufacturer, module design, and testing conditions.
The production of a TOPCon solar cell includes several advanced steps:
N-type wafer preparation
Surface texturing
Diffusion and cleaning
Tunnel oxide formation
Polysilicon deposition
Annealing
Metallization
Cell testing and sorting
Manufacturing TOPCon solar cells requires more sophisticated equipment than standard PERC production lines, but the performance gains often justify the additional investment.
Although highly efficient, TOPCon solar cells present several challenges.
The added passivated contact layers increase process requirements and equipment costs.
Production lines may require upgrades for oxidation, polysilicon deposition, and annealing.
Heterojunction Solar Cell and Interdigitated Back Contact Solar Cell also offer high efficiency and compete for premium market segments.
Despite these challenges, TOPCon technology has become one of the fastest-growing cell architectures in the global photovoltaic industry.
TOPCon solar cells are widely used in:
Utility-scale solar farms
Commercial rooftop systems
Industrial self-consumption projects
Residential installations
Balcony solar systems
Building-integrated photovoltaics
Their combination of high efficiency and durability makes them suitable for virtually any solar application.
When evaluating suppliers, consider the following:
Cell efficiency and module efficiency
Temperature coefficient
Bifaciality factor
Degradation guarantees
Production capacity
Automation level
Quality control systems
IEC 61215
IEC 61730
ISO 9001
ISO 14001
Financial stability
Warranty strength
Global project references
Module size and appearance
Colorful solar panel options
OEM and private labeling
TOPCon solar cells are rapidly replacing PERC as manufacturers upgrade to N-type technologies.
Industry trends indicate:
Increasing global TOPCon capacity
Declining production costs
Wider adoption in distributed and utility projects
Continued efficiency improvements
As the technology matures, TOPCon solar cells are expected to remain a dominant solution for high-performance solar modules.
In most applications, yes. TOPCon solar cells offer higher efficiency, lower degradation, and stronger energy yield over the system lifetime.
TOPCon modules are typically designed for 25–30 years, with excellent power retention throughout their service life.
Yes. Their lower temperature coefficient helps reduce output losses in high-temperature environments.
Initial costs may be slightly higher, but the improved energy generation often delivers better long-term economics.
A TOPCon solar cell represents one of the most significant advances in modern photovoltaic technology. By combining tunnel oxide passivation with N-type silicon, TOPCon cells deliver exceptional efficiency, reliability, and long-term energy production.
For buyers seeking high-performance solar solutions, TOPCon technology offers an excellent balance of advanced engineering and commercial practicality.
