445-465W
ISO 9001
ISO 14001
ISO 45001
IEC 61215
IEC 61730
Quality Assurance
Power Guarantee
Annual Decay
Topcon panels have good environmental adaptability, not only can they keep working efficiently in hot,high temperature environments, but also can prevent power degradation in environments with high humidity,which makes them well adapted to a wide range of climatic conditions around the world.

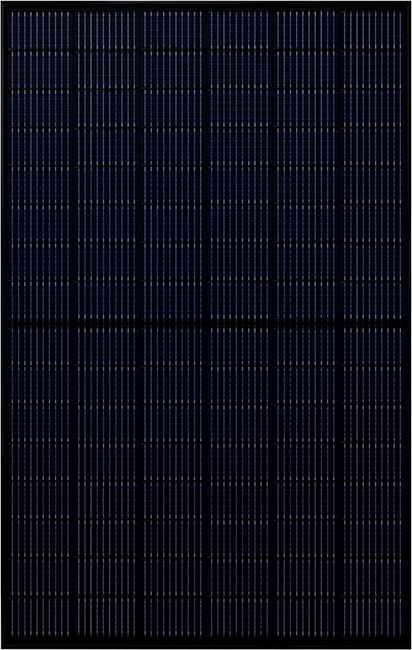

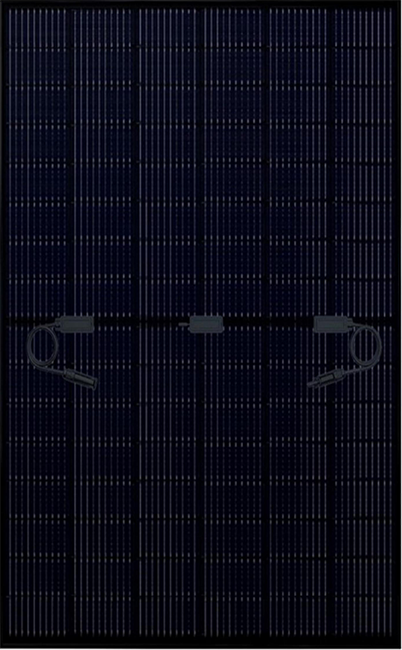

Luan Solar sells 500-530W all-black solar panels in large quantities, applying Topcon solar cell technology, double-sided power generation, higher power generation and higher efficiency. These excellent properties make luan solar panels an ideal solution for high power solar power generation.
We are a solar panel manufacturer with R&D capability to provide high quality and reliable products at competitive price.
We can customise full black solar panels according to your requirements, please contact us for details!
| Cell | N-type TOPCon（96） |

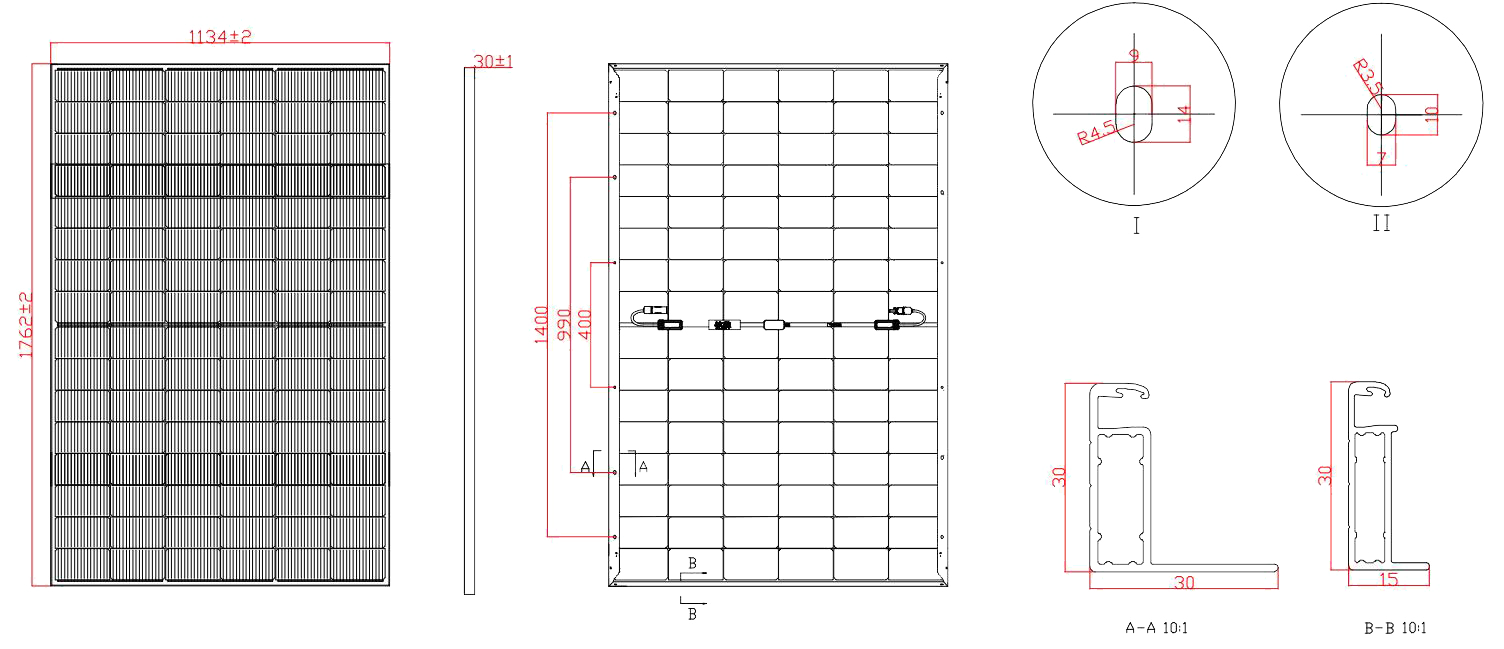

| Dimensions | 1762±2mm×1134±2mm×30±1mm |
| Weight | 25kg±3% |
| Glass | 2.0mm AR coating heatstrengthened glass,low iron |
| Frame | Black anodized aluminium alloy |
| junctionbox | IP68，3 diodes |
| Wireway | 4mm2，350mm（+）/350mm（-）or customized length |
| Packaging | 36 pcs/pallet，1800×1130×1270mm 940kg/pallet |
| Loadingquantity | 20GP：216pcs，40HQ：936pcs，17.5m truck：1296pcs |
| Maxsystem voltage | 1500V DC |
| Operating Temperature | -40℃ ~+85℃ |
| Fuse's rated current | 25A |
| Maxload front | 5400Pa |
| Maxload back | 2400Pa |
| Normal Operating Cell Temperature | 45±2℃ |
| Safety level | Class ll |
| Fire performance | UL Type l |
| Module | JKL96-D-445NB | JKL96-D-450NB | JKL96-D-455NB | JKL96-D-460NB | JKL96-D-465NB |
| STC/NOCT | STC NOCT STC FS FS RS | STC NOCT STC FS FS RS | STC NOCT STC FS FS RS | STC NOCT STC FS FS RS | STC NOCT STC FS FS RS |
| Pmax[W] | 445 335 356 | 450 339 360 | 455 343 364 | 460 347 368 | 465 351 372 |
| Vmp[V] | 27.99 26.27 27.97 | 28.19 26.47 28.17 | 28.39 26.67 28.37 | 28.59 26.87 28.57 | 28.79 27.07 28.77 |
| Imp[A] | 15.91 12.76 12.72 | 15.97 12.81 12.78 | 16.03 12.86 12.82 | 16.09 12.91 12.87 | 16.15 12.95 12.92 |
| Voc [V] | 34.21 32.08 33.78 | 34.41 32.28 33.98 | 34.61 32.48 34.18 | 34.81 32.68 34.38 | 35.01 32.88 34.58 |
| Isc[A] | 16.81 13.45 13.45 | 16.83 13.47 13.46 | 16.85 13.49 13.48 | 16.87 13.51 13.50 | 16.89 13.53 13.51 |
| EFF[%] | 22.27% | 22.52% | 22.77% | 23.02% | 23.27% |
| Power tolerance [W] | 0~+5W | ||||
| α_Isc | +0.046%/℃ | ||||
| β_Voc | -0.250%/℃ | ||||
| Y_Pmp | -0.300%/℃ | ||||
| STC | Irradiance 1000W/m²,Cell temperature 25℃,Spectral AM1.5 | ||||
| NOCT | Irradiance 800W/m²,Ambient temperature 20℃,Spectrum AM1.5,Wind speed 1m/s | ||||
Note:The electrical performance in this product catalog do not only refer to a single module,or are they promised in the contract.The electrical parameters are only used for comparison between different module types.h
