MO JKL108-D-(490-510W)NB

490-510W

Mo Series TOPCon Mono Full Black
Bifacial Glass Solar Panel
N-Type Topcon Panel

Full black solar panel wholesalers 490W 500W 510W

The Full Black Solar Panel features an integrated black design that combines high-efficiency Topcon cells, half-panel technology, and low-reflective glass, which not only improves light absorption, but also gives modern buildings an elegant and aesthetically pleasing visual effect. Its excellent power generation performance is suitable for residential, commercial rooftop and BIPV building integration applications. With excellent low-light performance and weather resistance, the all-black module can provide stable and reliable energy output under various environmental conditions, making green energy more efficient and aesthetically pleasing.

Luan Solar is a China all black solar panels wholesaler, we sell 490W 500W 510W all black solar panels in large quantities, we offer competitive price and perfect after-sales service, 30 years warranty, you can use our full black solar panels without any worry!



Click here to get factory prices→



Read More
Product Features
Basic Parameters
Product Features
Double sided power generation

Double sided power generation

The gain of double-sided power generation increases with the back light exposure,reaching up to 25% significantly reducing LCOE.
Visual total black

Visual total black

All black design,more harmonious and beautiful application scenarios.
Better Reliability

Better Reliability

Strict quality control and TUV Rheinland,CE,CTC testing certification ensure higher module reliability.
Excellentlow light performance

Excellentlow light performance

It can output more electricity under low light conditions suchas hazecloudy days,morningand evening.
Leading Quality Standards
15
yr

Quality assurance

30
yr

Power guarantee

-
0.40
%

Annual decay

Topcon batteries have good environmental adaptability, not only can they keep working efficiently in hot,high temperature environments, but also can prevent power degradation in environments with high humidity,which makes them well adapted to a wide range of climatic conditions around the world.


Applications of Full Black Solar Panels


Full Black Solar Panels are widely used in projects where both aesthetic appeal and energy performance are important. Their uniform black appearance allows them to blend seamlessly into modern architecture while delivering reliable power generation.


Residential rooftops
Full Black Solar Panels are especially popular in villas, townhouses, and high-end residential homes. Their sleek, all-black design integrates well with dark roofs, enhancing visual consistency without compromising solar efficiency.


Commercial and office buildings
For offices, hotels, and retail buildings, Full Black Solar Panels help maintain a professional and premium exterior. They are often chosen for visible rooftop or façade installations where brand image and building appearance matter.


Building-integrated photovoltaics (BIPV)
In BIPV applications, Full Black Solar Panels are used on façades, canopies, balconies, and shading structures. Their minimalist look makes them suitable for architectural designs that require clean lines and visual harmony.


Urban and residential communities
In dense urban areas or residential developments with appearance regulations, Full Black Solar Panels are preferred because they reduce visual contrast and are more likely to meet planning or homeowner association requirements.


Premium and showcase solar projects
Full Black Solar Panels are often selected for demonstration projects, green buildings, and eco-friendly developments where design quality is as important as sustainability performance.


By combining modern aesthetics with stable power output, Full Black Solar Panels offer a versatile solution for residential, commercial, and architectural solar applications.


Why Are Full Black Solar Panels Becoming More Popular?


Stronger visual appeal
Full Black Solar Panels feature a clean, uniform black design that blends well with modern rooftops and architectural styles.


Better integration with buildings
They reduce visual contrast on roofs and façades, making them easier to approve in residential communities and design-focused projects.


No sacrifice in performance
Advances in cell and coating technologies allow Full Black Solar Panels to maintain high efficiency while offering premium aesthetics.


Rising demand for premium solar solutions
Homeowners and developers increasingly value solar systems that enhance property appearance as well as energy output.


Wider availability and cost optimization
More manufacturers now offer Full Black Solar Panels across different power ranges, making them more accessible and cost-effective.


Full Black Solar Panel FAQ


Q1: Are Full Black Solar Panels less efficient than standard solar panels?
A: No. Modern Full Black Solar Panels use advanced cell technologies and anti-reflective coatings, allowing them to achieve efficiency levels comparable to standard mono panels, with minimal performance difference.


Q2: Why do Full Black Solar Panels look more expensive?
A: Full Black Solar Panels use black cells, black backsheet, and black frames, which require additional processing steps. This design-focused manufacturing can slightly increase cost but delivers higher aesthetic value.


Q3: Are Full Black Solar Panels suitable for hot climates?
A: Yes. High-quality Full Black Solar Panels are designed with optimized temperature coefficients and perform reliably in hot and high-irradiance environments when properly ventilated.


Q4: Do Full Black Solar Panels generate more heat?
A: They may absorb slightly more heat due to their color, but the impact on overall system output is minimal. Proper system design ensures Full Black Solar Panels operate safely and efficiently.


Q5: Where are Full Black Solar Panels most commonly used?
A: Full Black Solar Panels are widely used in residential rooftops, villas, commercial buildings, and BIPV projects where appearance and architectural integration are important.


Q6: Are Full Black Solar Panels worth the investment?
A: For users who value design, property appearance, and long-term performance, Full Black Solar Panels offer strong overall value by combining reliable energy generation with premium aesthetics.


Basic Parameters
Mechanical Parameters
CellN-type TOPCon(108)
Dimensions1960±2mm×1134±2mm×30±1mm
Weight28kg±3%
Glass2.0mm semi tempered coated glass, low iron
FrameBlack anodized aluminum alloy
junctionboxIP68,3 diodes
Wireway4mm2,300mm(+)/300mm(-)or customized length
Packaging33 pieces/pallet
Loadingquantity40HQ:864pieces,13 meter truck:864pieces,17.5 meter truck:1152pieces

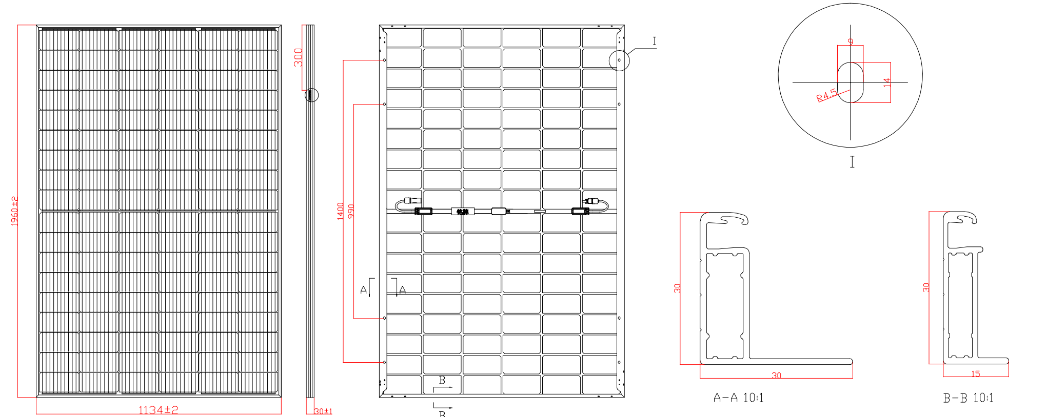

Drawing

Full black JKL108-D-(490-510W)NB

Operation Parameters
Maxsystem voltage1500V DC
Operating Temperature-40℃ ~+85℃
Fuse's rated current25A
Maxload front5400Pa
Maxload back2400Pa
Normal Operating Cell Temperature45±2℃
Safety levelClass ll
Fire performance3UL Type l

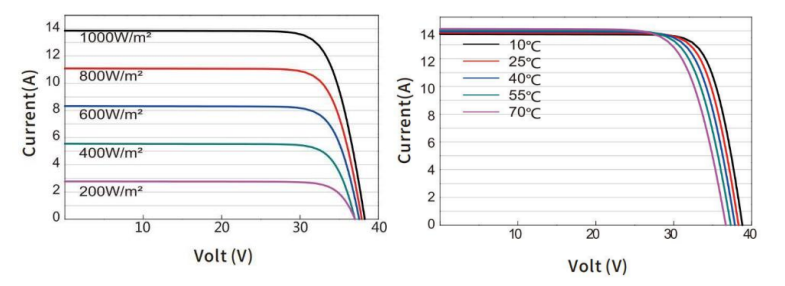

I-V Curve

Full black JKL108-D-(490-510W)NB

Electrical Parameters
ModuleJKL108-D-490NBJKL108-D-495NBJKL108-D-500NBJKL108-D-505NBJKL108-D-510NB
STC/NOCT(FS)(FS)(RS)STCNOCTSTC(FS)(FS)(RS)STCNOCTSTC(FS)(FS)(RS)STCNOCTSTC(FS)(FS)(RS)STCNOCTSTC(FS)(FS)(RS)STCNOCTSTC
Maximum power [W]490370392495373396500376400505380404510384408
Maximum working voltage [V]31.0829.1729.8831.2829.3730.0931.4829.5730.2831.6829.7730.4631.8829.9730.67
Maximum working current [A]15.7712.6713.7615.8312.7113.8315.8912.7513.8915.9512.7913.9416.0112.8213.98
Open circuit voltage [V]37.6535.7235.6637.8535.9235.8738.0536.1236.0538.2536.3236.2638.4536.5236.45
Short circuit current [A]16.7713.4014.7516.7913.4214.7716.8113.4414.7916.8313.4614.8116.8513.4814.83
EFF [%]    22.05%    22.27%    22.50%   22.72%    22.95%
Power tolerance(W)0 ~+5W
Short circuit current temperature coefficient+0.046%/℃
Open circuit voltage temperature coefficient-0.250%/℃
Maximum power temperature coefficient-0.300%/℃
STCIrradiance 1000W/m², Cell temperature 25°C,Spectral AM1.5
NOCTIrradiance 800W/m², Ambient temperature 20℃, Spectrum AM1.5, Wind speed1m/s

Note: The electrical performance in this product catalog do not only refer to a single module, or are they promised in the contract. The electrical parameters are only used for comparison between different module types.
