445-465W

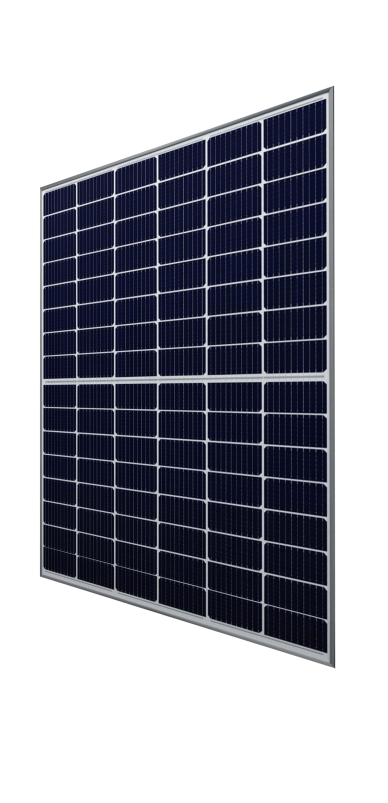

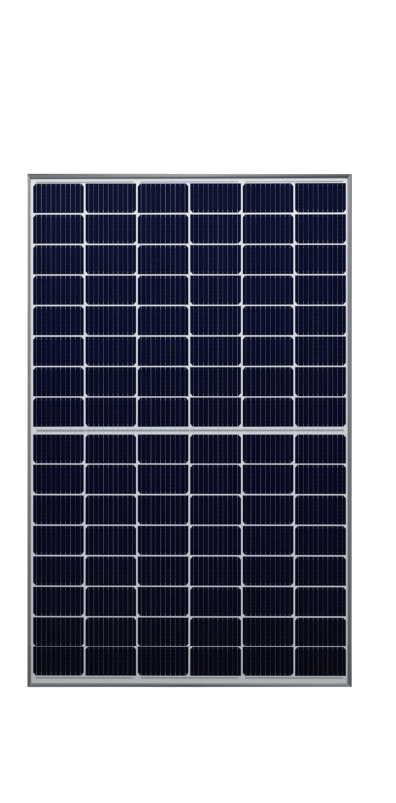

Our commercial Topcon solar panels deliver higher efficiency, superior durability, and long-term energy savings compared to traditional solar technologies. Designed for large-scale commercial projects, industrial facilities, and corporate buildings, these panels offer exceptional power output and reliability, even in low-light conditions.
Cut energy costs & maximize ROI
Advanced N-Type Topcon technology for higher efficiency
Durable & weather-resistant for long-term performance
Bulk orders available with competitive pricing
Luan solar is a solar panel manufacturing and selling factory, which can accept large quantity manufacturing, provide favourable price, perfect after-sales service support and 30 years warranty. --Buy our commercial solar panels, you don't have to worry about anything!
Quality assurance
Power guarantee
Annual decay
| Cell | N-type TOPCon（96） |

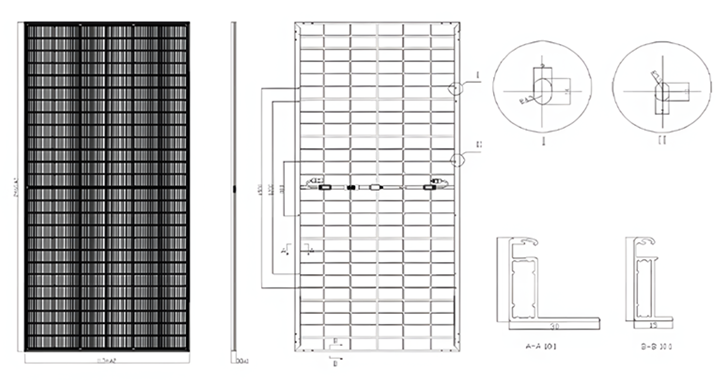

| Dimensions | 1762±2mmx1134±2mmx30±1mm |
| Weight | 22kg±3% |
| Glass | 3.2mm AR coating tempered glass,low Iron |
| Frame | Anodized aluminium |
| junctionbox | IP68,3 diodes |
| Wireway | 4mm²，350mm (+)/350mm (-)or Customlzed Length |
| Packaging | 36pieces/pallet |
| Loading quantity | 40 HQ: 936 pieces, 17.5 meter truck:1296 pleces |
| Maxsystem voltage | 1500V DC |
| Operating Temperature | -40C~+85℃ |
| Fuse's rated current | 25A |
| Maxload front | 5400Pa |
| Maxload back | 2400Pa |
| NOCT | 45±2°C |
| Backside rate | 80%±5℃ |
| Safety level | Class ll |
| Fire performance | UL Type l |
| Model | JKL96-D-445NH | JKL96-D-450NH | JKL96-D-455NH | JKL96-D-460NH | JKL96-D-465NH |
| STC/NOCT | STCNOCT | STCNOCT | STCNOCT | STCNOCT | STCNOCT |
| Maximum power [W] | 455339 | 450343 | 455347 | 460350 | 465354 |
| Maximum working voltage [V] | 28.5127.17 | 28.6927.35 | 28.8827.53 | 29.0727.71 | 29.2627.89 |
| Maximum working current [A] | 15.6212.51 | 15.6912.55 | 15.7612.61 | 15.8312.66 | 15.9112.72 |
| Open circuit voltage [V] | 34.1132.41 | 34.3132.61 | 34.5132.79 | 34.7132.98 | 34.9133.17 |
| Short circuit current [A] | 16.3313.16 | 16.4113.21 | 16.4713.27 | 16.5413.33 | 16.6113.38 |
| EFF [%] | 22.27% | 22.52% | 22.77% | 23.02% | 23.27% |
| Power tolerance [W] | 0 ~+5W | ||||
| Short circuit current temperature coefficient | +0.046%/℃ | ||||
| Open circuit voltage temperature coefficient | -0.250%/℃ | ||||
| Maximum power temperature coefficient | -0.300%/℃ | ||||
| STC | Irradiance 1000W/m², Cell temperature 25°C,Spectral AM1.5 | ||||
| NOCT | lrradiance 800W/m², Ambient temperature 20℃, Spectrum AM1.5, Wind speed 1m/s | ||||
Note: The electrical performance in this product catalog do not only refer to a single module, or are they promised in the contract. The electrical parameters are only used for comparison between different module types.
