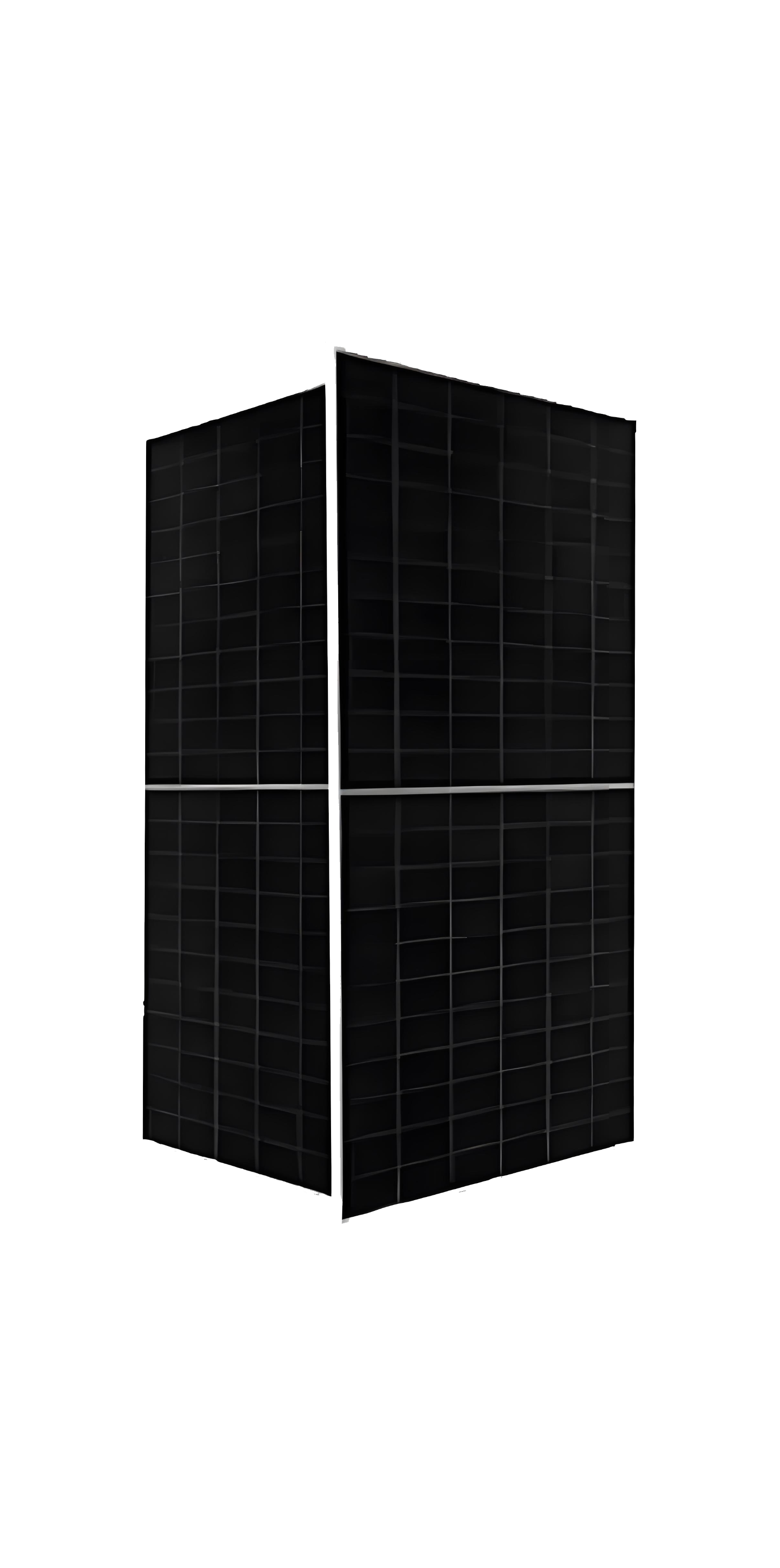

670W BC Solar Panel | N-Type TOPCon Bifacial Module 655-675W

LAN JKL66-C-670BC(655-675W)

655-675W

Leveraging advanced Back Contact (BC) technology, all
electrodes are moved to the rear, achieving a busbar-free
front and redefining the peak of all-black aesthetics.

Specification download

JKL66-C-670BC.pdf

Product Features

Basic Parameters

Product Features

Grid-Free

Grid-free front design with an all-black appearance, perfectly suited for visually demanding applications such as high-end communities and scenic areas.

High Efficiency

Back-contact (BC) technology eliminates front grid shading, increases active area, and achieves module conversion efficiency exceeding 24.8%.

Low Degradation

Leading Quality Standards

Quality assurance

Basic Parameters

Mechanical Parameters

Cell	N-type TOPCon（132）
Dimensions	2382±2mm×1134±2mm×33±1mm
Weight	33kg±3%
Glass	2.0mm AR coating heatstrengthened glass, low iron
Frame	Black anodized aluminum alloy
junctionbox	IP68，3 diodes
Wireway	4mm²，350mm（+）/350mm（-）or customized length
Packaging	36 pieces/pallet
Loadingquantity	40HQ：720pieces，17.5 meter truck：864pieces
